Name: Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

ホーム製品ワイヤレスバーコードスキャナ

Wireless Bluetooth Barcode Scanner 1D 2D QR CMOS 1280x800

商品の詳細:

お支払配送条件:

最小注文数量:	1
価格:	15

連絡先

詳細製品概要

スキャン速度:	65cm/s	スキャン要素:	CMOS
カメラの解像度:	1280*800	読み取り精度:	≥3ml/0.076mm
被写界深度:	30-500MM	印刷コントラスト:	20％以上
CPU:	32ビット	バッテリー容量:	1200mah
継続的な作業時間:	12時間	充電時間:	3.5h
無線距離:	Bluetooth 30m、2.4g 100m	ストレージ容量:	350kb（20,000バーコード）
重さ:	≈70g	寸法:	L130mm * W46.5mm * H28.5mm ロープの大きさは
動作温度:	-20ºC〜55ºC
ハイライト:	Wireless Bluetooth barcode scanner , 1D 2D QR barcode scanner , CMOS wireless barcode scanner

Portable High Performance Wireless Bluetooth Barcode Scanner Mini 1D 2D Barcode Scanner

Product Specifications

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Wireless 2.4G Bluetooth
Scan Speed	65cm/S
Scan Element Type	CMOS
Camera	1280*800
Resolution	3mil Code39
Depth of Field	30-500mm
Scan Mode	Manual, Continuous, Auto Scan, Flashing
Print Contrast Signal	20%
CPU	32 Bit
Battery	1200mAh
Continuous Working Time	12h
Charging Time	3.5h
Storage	350kb (Over 20,000 Barcodes)
Dimensions	L130mm * W46.5mm * H28.5mm
Weight	≈70g (without cable)

Key Features

High-performance 1D/2D barcode scanning with CMOS technology
Dual wireless connectivity: Bluetooth (30m) and 2.4G (100m open distance)
Fast scanning at 65cm/s with 3mil resolution
Wide scanning angle (±360° roll, ±60° pitch, ±70° yaw)
Long battery life: 12 hours continuous operation
Rugged design with 1.5m drop resistance
Supports wide range of barcode symbologies including QR codes, PDF417, Data Matrix
Compact and lightweight (130×46.5×28.5mm, 70g)

Technical Parameters

Light Source: White LED (auto-adjust brightness) + Red LED aiming (525nm)

Operating Temperature: -20ºC to 55ºC

Storage Temperature: -20ºC to 60ºC

Humidity Resistance: 5% to 95% (non-condensing)

Interface: Type C

Power Supply: DC5V (47mA standby, 200mA average)

Supported Barcode Types

1D Codes: Codabar, Code39, Code128, UPC, EAN, GS1 Databar, MSI, and more

2D Codes: PDF417, QR Code, Data Matrix, Aztec, Micro QR

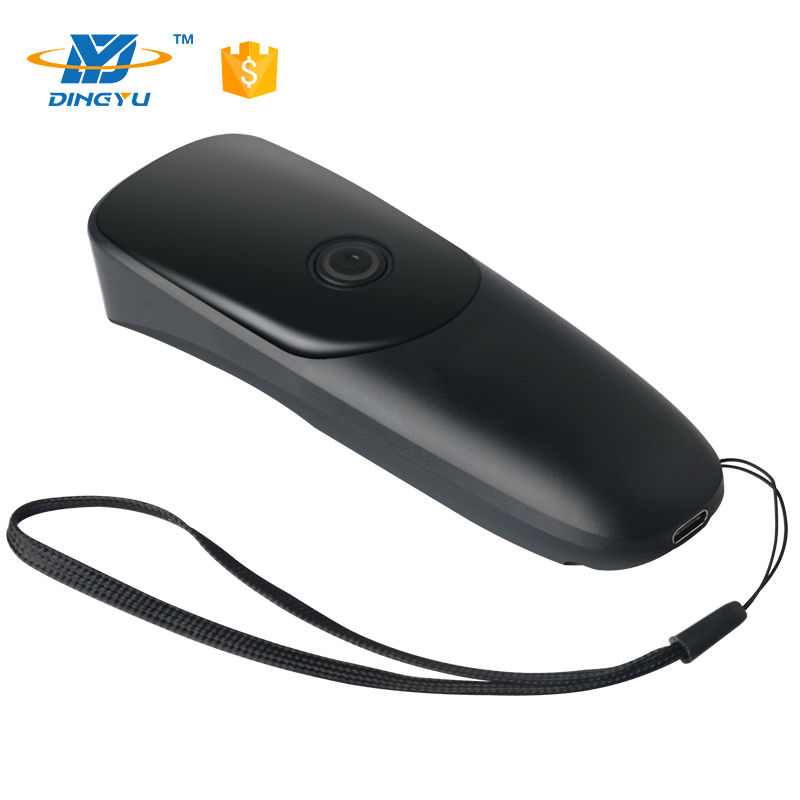

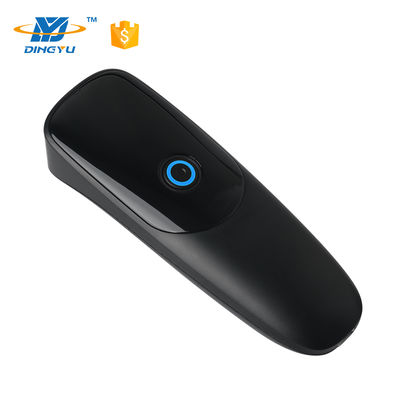

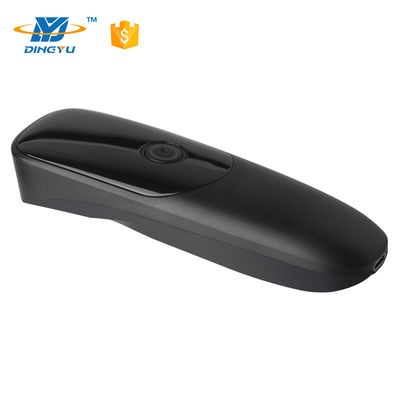

Product Images
