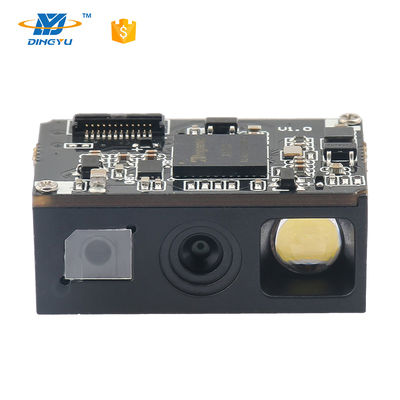

Name: Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 25 USD
Availability: InStock

ホーム製品バーコードスキャンエンジン

Cost-Effective Embedded 2D CMOS Barcode Scan Engine with 65cm/S Scan Speed and 3mil/0.076mm Reading Precision

商品の詳細:

お支払配送条件:

最小注文数量:	1
価格:	25

連絡先

詳細製品概要

型番:	DE2690D	インターフェースの種類:	USB
スキャン速度:	65cm/s	スキャン要素:	CMOS
読み取り精度:	3mil/0.076mm	イメージセンサー:	1280×480
印刷コントラスト:	15％	寸法:	28.3mm長さ* 19.1mm幅* 12.0mm高さ
保管温度:	-40 ℃〜70℃	FFCケーブル:	5cm
高さを落とします:	1.2m	重さ:	5.5g
被写界深度:	70～750mm	動作温度:	-20ºC〜55ºC
湿度:	5%～95%
ハイライト:	65cm/S Scan Speed Barcode Scan Engine , 3mil/0.076mm Reading Precision 2D Barcode Scanner Module , 1280*480 Image Sensor Embedded Barcode Reader

Cost-Effective Embedded 2D CMOS Image Reader Module with Megapixel Camera

OEM ODM Mini OCR Passport ID Card Embedded Barcode Scanner 2D Wired Module

A compact, high-performance embedded scanning solution for ID cards, passports, and barcode reading applications.

Product Specifications

Parameter	Details
Weight	5.5g (without cable)
Dimensions	28.3mm L × 19.1mm W × 12.0mm H
Interface	USB, USB-com (requires driver), TTL (USB protocol: Full Speed, USB 2.0)
Light Source	White LED (auto-brightness adjustment) Red aiming LED (525nm wavelength)
CMOS Sensor	1280×800 resolution
CPU	ARM 32-bit processor
Resolution	1D: ≥3mil
Depth of Field	70-750mm (varies by barcode type)
Scan Modes	Manual, Auto, Continuous, Command control
Power Requirements	3.3V, 220mA (operating), 120mA (standby), 40mA (sleep)
Operating Temperature	-20°C to 55°C

Supported Symbologies

1D Codes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more
2D Codes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

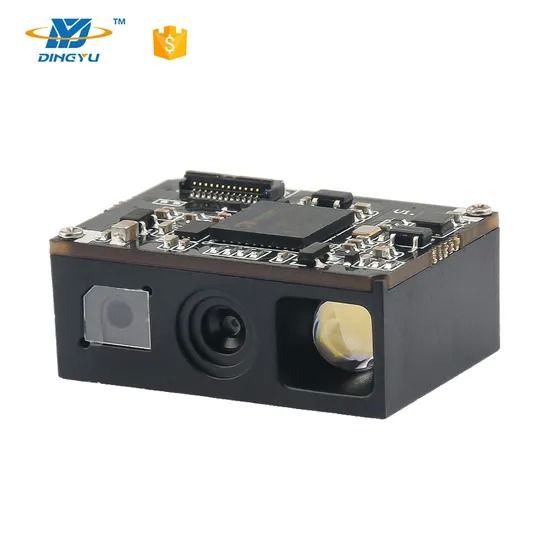

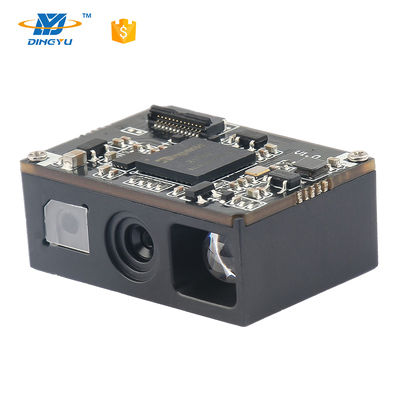

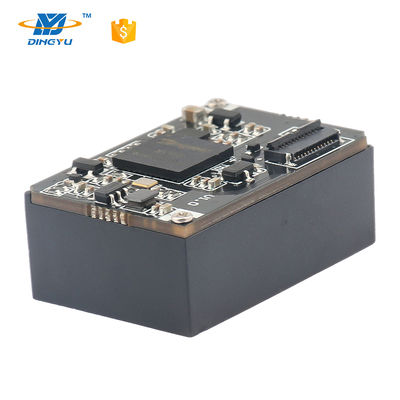

Additional Product Views
