Name: DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

ホーム製品 1D バーコードの走査器

DYscan DS6530-1D USB 1D Barcode Scanner 300 Scans/Sec

商品の詳細:

お支払配送条件:

最小注文数量:	1

連絡先

詳細製品概要

モデル番号:	DS6530-1D	インターフェイスタイプ:	USB
スキャン速度:	300のスキャン/秒	スキャン要素:	CMOS
解決:	2500	最小解像度:	≥3ml/0.076mm
被写界深度:	30mm〜700mm	解読の速度:	300times/s
スキャン角度:	ロール：±30°、ピッチ：±60°、スキュー：±60°	重さ:	230g
寸法:	152mm * 66mm * 95mm	電源:	DC 5V@80MA
動作温度:	-20ºC〜50ºC	保管温度:	-40ºC〜60ºC
湿度:	5%～95%
ハイライト:	USB 1D barcode scanner , high-speed barcode scanner 300 scans/sec , DYscan DS6530-1D barcode scanner

DS6530-1D High-Performance 1D Barcode Scanner

The DS6530-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliability and efficiency, it accurately reads barcodes from paper, products, screens, and other surfaces across diverse industrial and commercial applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with exceptional accuracy
High-speed processor enables rapid decoding (4mil resolution)
Multi-language and system compatibility
Dual interface support: USB and RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Communication	USB
Scan Type	Linear CCD Sensor
Resolution	2500
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~700mm
Decoding Speed	300 times/second
Scan Modes	Manual, continuous, auto-sense, flashing
Prompt Methods	Buzzer, LED, vibration
Scan Angle	Roll: ±30°, Pitch: ±60°, Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	Approximately 230g (scanner only)
Dimensions	152mm (L) × 66mm (W) × 95mm (H)
Communication Modes	USB, RS232
Interface Type	USB, DB9
Power Supply	DC 5V@80mA (operational)

Environmental Specifications

Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)
Transport Vibration Test	10H@125RPM

Included Accessories

Cables

USB Cable - for connecting to host devices

RS232 Cable - with USB power supply for host connection

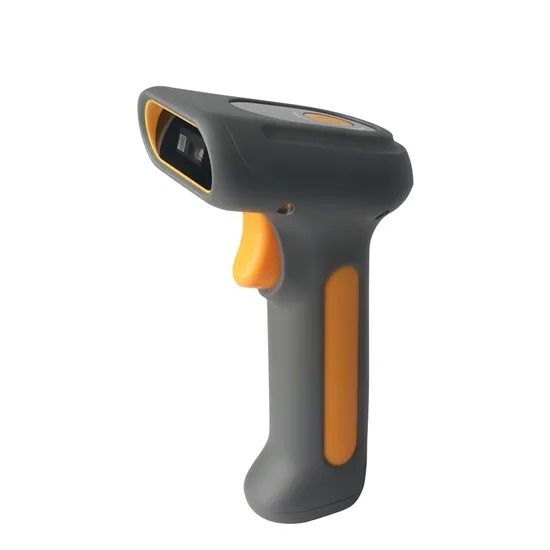

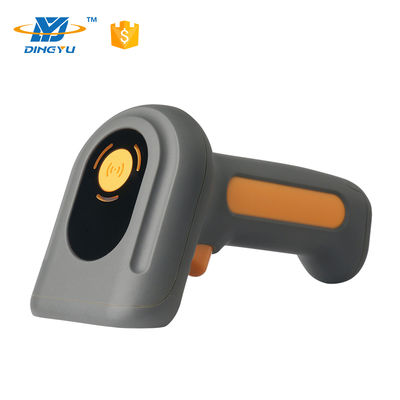

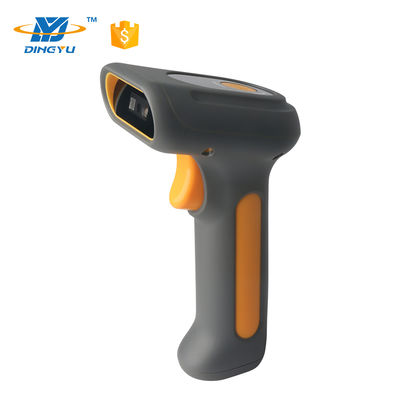

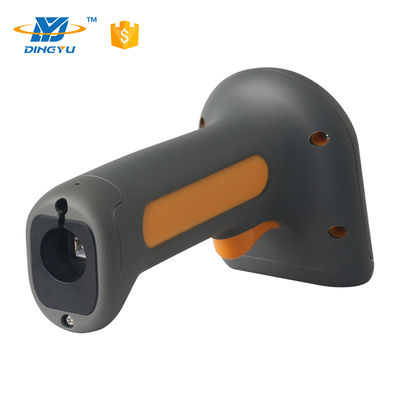

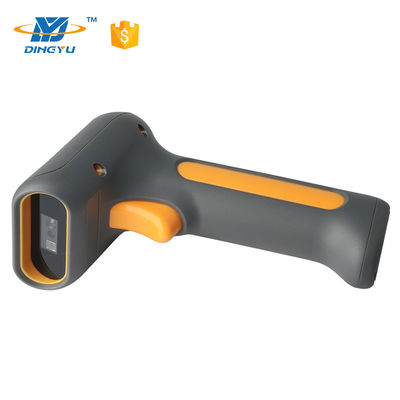

Product Images

Frequently Asked Questions

How do you ensure the high quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.

What is your quality control process?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.

What is the warranty period?

We provide a 12-month warranty for all our barcode scanners.

How do you maintain stable performance?

Our assembly line production process ensures consistency, with each product tested at least 4 times before delivery.

Do you offer OEM/ODM services?

We provide complete OEM services including custom branding, packaging, and documentation. Our technical team supports ODM development for specialized requirements.

What are your company's strengths?

We operate specialized departments for R&D, production, and sales/marketing, ensuring professional management of each product lifecycle stage.

Is driver installation required?

No drivers are needed - our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
