Name: DS5600 1D Barcode Scanner USB 300 Scans/Sec 3mil Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

ホーム製品 1D バーコードの走査器

DS5600 1D Barcode Scanner USB 300 Scans/Sec 3mil Precision

商品の詳細:

お支払配送条件:

最小注文数量:	1

連絡先

詳細製品概要

モデル番号:	DS5600	インターフェイスタイプ:	USB
スキャン速度:	300のスキャン/秒	スキャン要素:	CMOS
CPU:	32ビット	解決:	2500
読み取り精度:	3mil/0.076mm	解読の速度:	300times/s
被写界深度:	10mm-600mm	スキャンモード:	マニュアル、連続、自動感覚、ファッシング
印刷コントラスト:	20％	重さ:	≈160.8g（ケーブルなし）
寸法:	L68.4mm * W170.6mm * H87.6mm	電源:	DC 5V@80MA（作業）
動作温度:	-20ºC〜50ºC
ハイライト:	DS5600 1D barcode scanner USB , 1D barcode scanner 300 scans/sec , barcode scanner 3mil precision

1D 2D Barcode QR Code Scanner - Handheld Wired Cable Retail Barcode Scanner

The DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset tracking.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with ease
High-performance processor enables fast decoding (3mil resolution)
Supports multiple languages and operating systems
USB interface for universal connectivity
Widely used in supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	20mm~680mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing, control command
Prompt Method	LED indicator, buzzer
Scan Angle	Pitch: ±60°, Roll: ±30°, Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	≈160.8g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Communication Mode	USB, USB-COM
Power Supply	DC 5V@80mA (work)

Environmental Specifications

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)

Accessories

USB Cable for connecting to host devices
RS232 Cable with USB supply cable for alternative connections

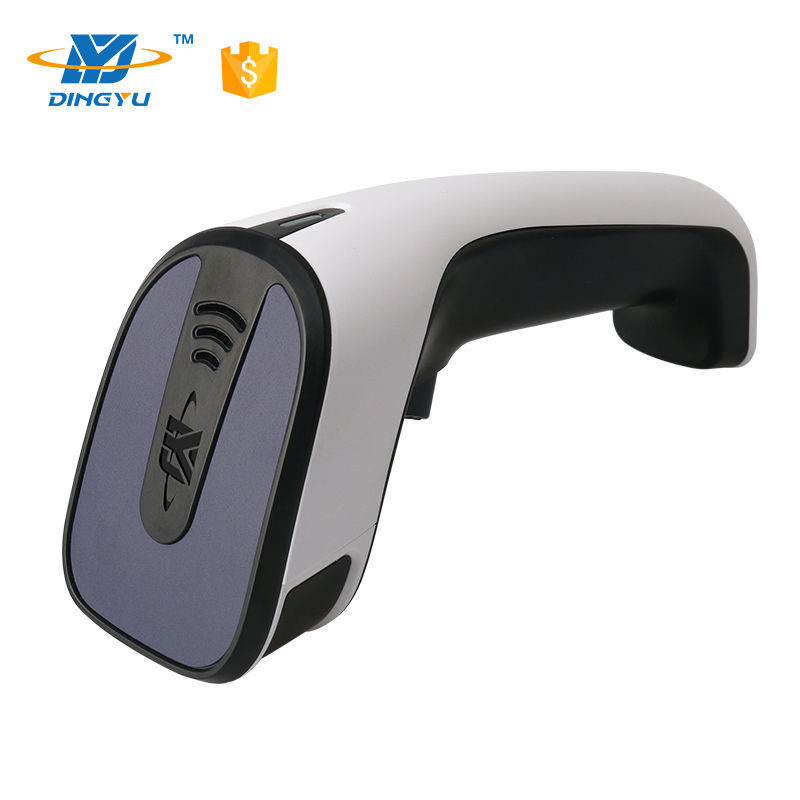

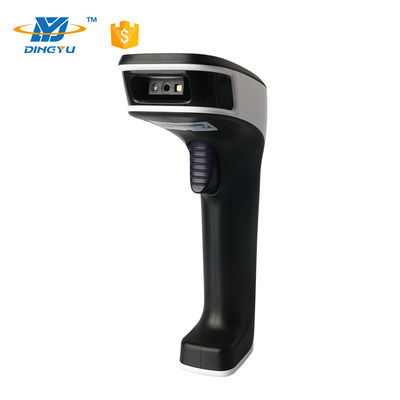

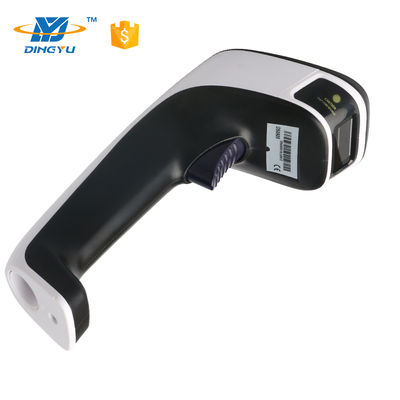

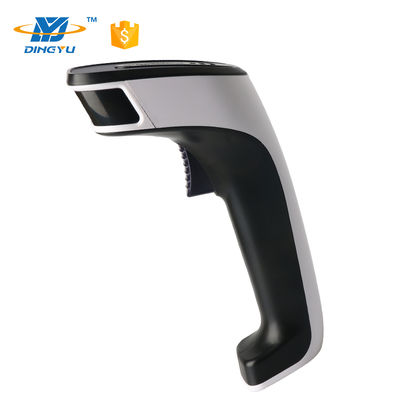

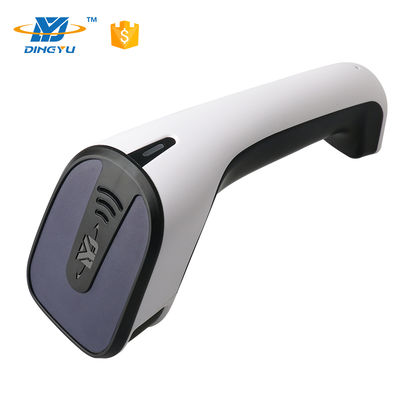

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. We maintain strict quality control with professional testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our products are CE, FCC, and ROHS certified.

Q2: What quality control measures do you implement?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipping.

Q3: What is the warranty period?

12 months warranty from date of purchase.

Q4: How do you maintain stable performance?

We implement flow line production with multiple quality checkpoints. Each product is tested at least 4 times before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development for specialized requirements.

Q6: What are your company strengths?

We have dedicated departments for R&D, production, and sales/marketing, each led by experienced directors. This structure ensures professional product development and customer support.

Q7: Are drivers required for operation?

No drivers needed - our scanners support plug-and-play functionality with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
