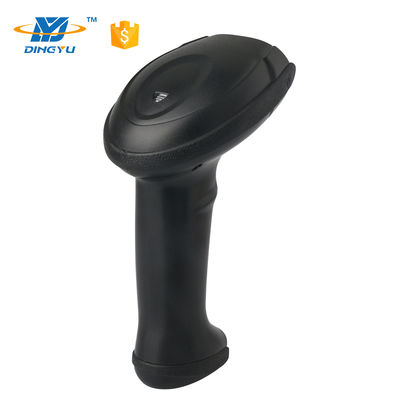

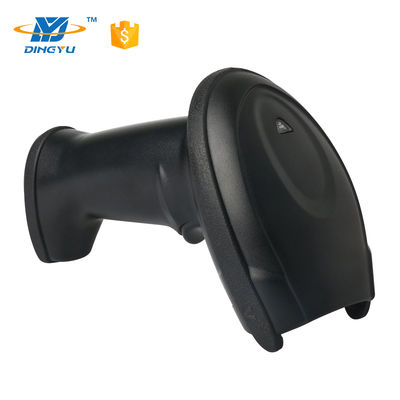

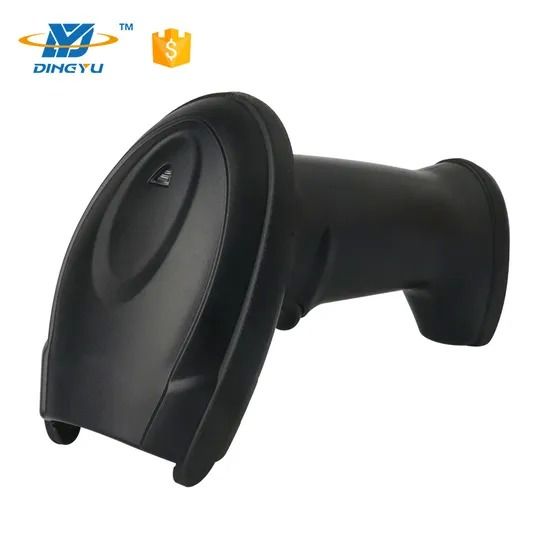

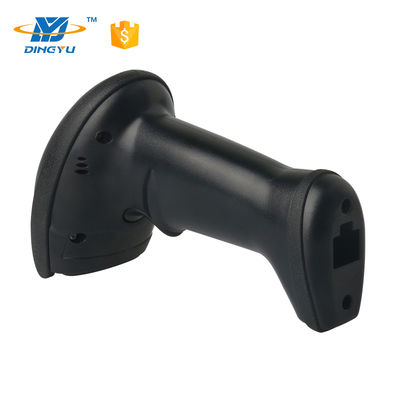

Name: DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

ホーム製品 1D バーコードの走査器

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader

商品の詳細:

お支払配送条件:

最小注文数量:	1
価格:	10

連絡先

詳細製品概要

モデル番号:	DS5900-1D	インターフェイスタイプ:	USB、RS232
スキャン速度:	300のスキャン/秒	スキャン要素:	CCD
カメラの解像度:	640*480	読み取り精度:	3mil code39
被写界深度:	10～600mm	解読の速度:	300times/s
ケーブルの長さ:	1.5m	重さ:	160g
解決:	2500	高さを落とします:	1.5m
動作温度:	-20から55度	保管温度:	-40～60度
寸法:	L165.5mm * W63.5mm * H92.3mm
ハイライト:	USB barcode scanner 300 scans/sec , 1D barcode scanner with CCD technology , DS5900-1D barcode reader with warranty

1D Handheld Wired Barcode Scanner CCD Bar Code Reader with USB Cable

Quick scanning Code39 Reader CCD 1D Wired USB BT Handheld Barcode Scanner

Product Specifications

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90% Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈160g(without cable)
Dimension	L165.5mm * W63.5mm * H92.3mm
Communication Mode	USB(USB-KBW,USB-COM), RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA(work)
Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp., High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM
