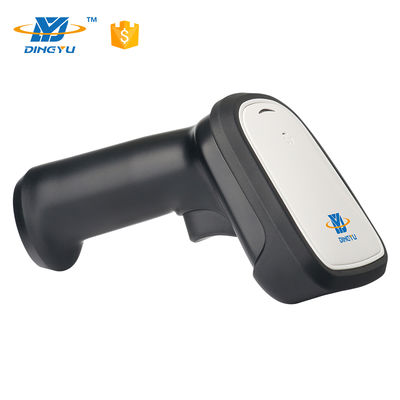

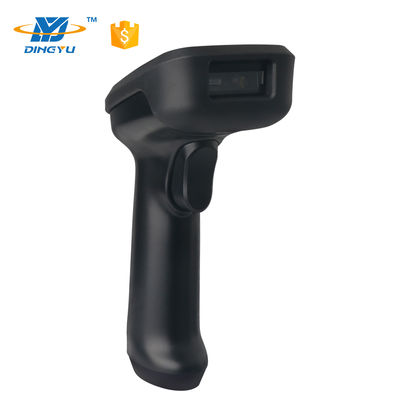

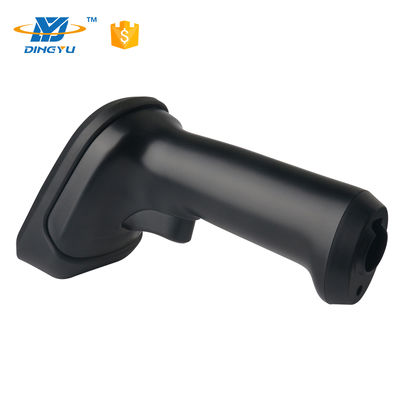

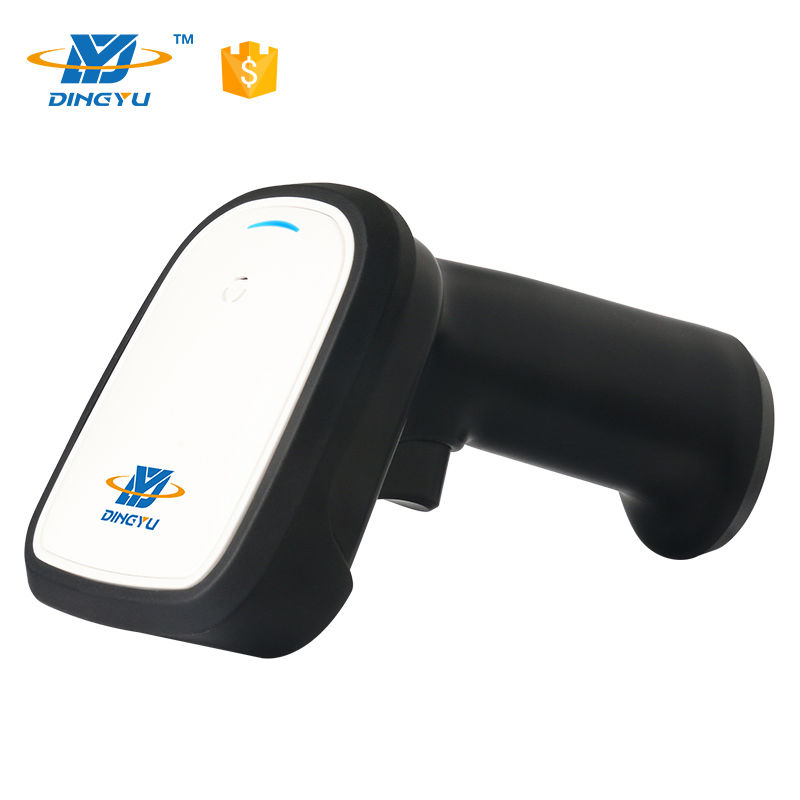

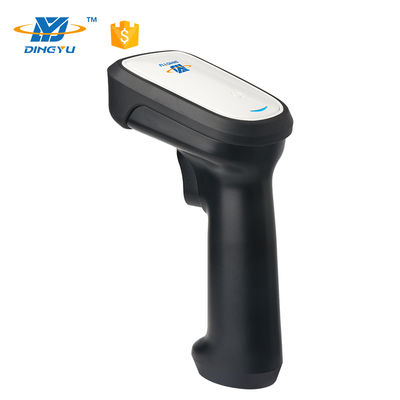

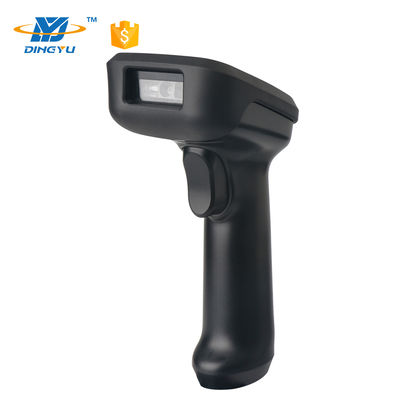

Name: DS5220-1D USB Barcode Scanner 300 Scans/Sec 3mil Precision
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

ホーム製品 1D バーコードの走査器

DS5220-1D USB Barcode Scanner 300 Scans/Sec 3mil Precision

商品の詳細:

お支払配送条件:

最小注文数量:	1

連絡先

詳細製品概要

モデル番号:	DS5220-1D	インターフェイスタイプ:	USB
スキャン速度:	300のスキャン/秒	スキャン要素:	CMOS
解決:	2500	読み取り精度:	3mil
解読の速度:	300times/s	被写界深度:	20mm〜680mm
スキャンモード:	マニュアル、連続、自動感覚、点滅、制御	CPU:	32ビット
印刷コントラスト:	20％	重さ:	160g
寸法:	L68.4mm * W170.6mm * H87.6mm	電源:	DC 5V@80MA（作業）
動作温度:	-20ºC〜50ºC
ハイライト:	USB barcode scanner with 300 scans/sec , 1D barcode scanner 3mil precision , DS5220-1D barcode scanner with warranty

1D Handheld Wired Barcode Scanner CCD Bar Code Reader with USB Cable

The DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for versatility, it efficiently reads barcodes from paper, goods, screens, and other media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D barcodes with ease
High-performance processor enables fast decoding (3mil resolution)
Supports multiple languages and operating systems
USB interface for universal connectivity
Wide application in supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	20mm~680mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing, control command
Prompt method	LED indicator, buzzer
Scan angle	Pitch:±60°, Roll: ±30°, Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.

Physical Parameters

Weight	≈160.8g (without cable)
Dimension	L68.4mm × W170.6mm × H87.6mm
Communication Mode	USB, USB-COM
Interface Type	USB, USB-COM
Power Supply	DC 5V@80mA (work)

Environmental Specifications

Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Transport vibration Test	10H@125RPM

Accessories

USB Cable for connecting to host devices
RS232 Cable with USB supply cable for alternative connections

Product Gallery

Application

Frequently Asked Questions

How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our quality control includes professional testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROSH certifications.

How do you perform quality control?

We conduct wire bend tests for 1 million cycles, button tests for 1 million presses, and all devices are thoroughly tested before shipment.

What is the warranty period?

12 months warranty.

How do you ensure stable performance?

We use flow line production throughout the manufacturing process. Each product undergoes at least 4 tests before delivery.

Do you offer OEM/ODM services?

We provide OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services for specialized requirements.

What are your company strengths?

As a professional scanner manufacturer, we have dedicated departments for R&D, production, testing, marketing, sales, and customer service, each led by experienced directors.

Do I need to install drivers?

No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
