Name: DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

ホーム製品 1D バーコードの走査器

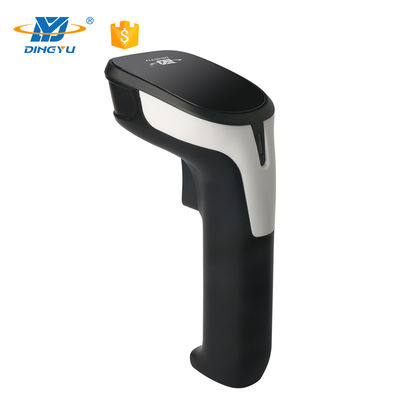

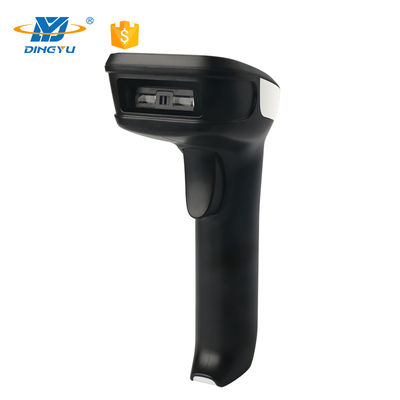

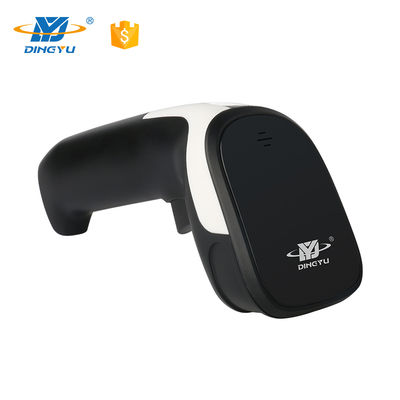

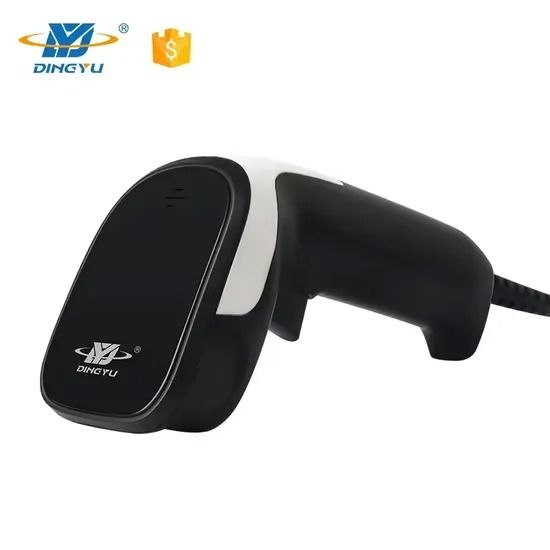

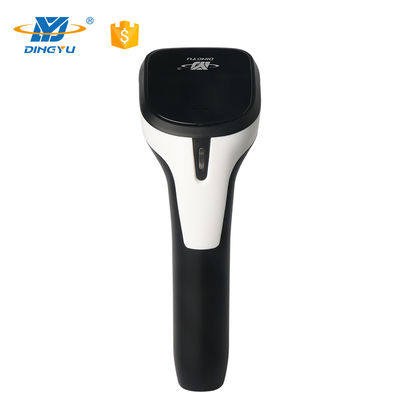

DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface

商品の詳細:

お支払配送条件:

最小注文数量:	1

連絡先

詳細製品概要

モデル番号:	DS5110	インターフェイスタイプ:	USB
スキャン要素:	CCD	解決:	3mil code39
被写界深度:	10～600mm	スキャンモード:	マニュアル、連続、自動スキャン、点滅
印刷コントラスト:	20％	CPU:	32ビット
ケーブルの長さ:	1.5m	重さ:	147g
電源:	DC 5V 80MA	高さを落とします:	1.5m
動作温度:	-20〜50度	コミュニケーション:	USB (USB-KBW,USB-COM) RS232
寸法:	L161mm * W63mm * H80mm
ハイライト:	1D barcode scanner with USB interface , DS5110 barcode scanner 600mm range , USB 1D barcode scanner with warranty

High Speed Barcode Scanner Wired Handheld 1D Barcode Scanner

1D CCD Barcode QR Code Scanner Handheld Wireless Retail Barcode Scanner

The DS5110 is a high-performance 1D barcode scanner featuring leading CCD image recognition technology. It easily reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehouse logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Product Specifications

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan Angle	Test Conditions: CODE39, 10mil/0.25mm, PCS90% Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈147g (without cable)
Dimensions	L161mm × W63mm × H80mm
Communication Mode	USB (USB-KBW, USB-COM), RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA (work)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Test	30 minutes for high temp., 30 minutes for low temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport Vibration Test	10H@125RPM

Key Features

Ergonomic design for comfortable use
Reads all mainstream 1D barcodes easily
High-performance processor with fast decoding (3mil)
Supports multiple languages and systems
Interfaces: USB, RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: We are a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.

Q2: How do you perform quality control?

DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.

Q3: What is the warranty period for the barcode scanner?

DYscan: 12 months warranty.

Q4: How do you maintain stable performance?

DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Do you provide OEM or ODM services?

DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company's strengths?

DYscan: We are a professional scanner manufacturer with specialized departments: R&D for new products, production for manufacturing and testing, and marketing/sales with customer service teams.

Q7: Do I need to install drivers?

DYscan: No. Our scanners support plug-and-play functionality and work with Windows, Mac OS, iOS, Linux, UNIX, and Android without drivers.
